A pickup swap can change a guitar more dramatically than a new set of strings or a pedal setting. It can add clarity to a muddy neck position, give a bridge pickup more bite, or simply bring a favourite guitar closer to the sound in your head. Learning how to install guitar pickups is a satisfying home project, but it rewards patience: one loose earth connection or overheated control can leave an otherwise good upgrade sounding wrong.
This guide is aimed at standard passive electric guitar pickups, such as single-coils, humbuckers and P-90-style units. If your instrument uses an active system, a battery, piezo pickup or complex switching, check the maker’s wiring diagram first. Those systems can need a different approach.
Check the pickup will fit before opening the guitar
The most common surprise in a pickup installation happens before the soldering iron is switched on. A replacement may be the right type electrically but still not fit the guitar’s route, pickguard or mounting ring.
Check whether your guitar takes single-coils, humbuckers, P-90s, Filter’Tron-style pickups or another format. A humbucker-sized P-90, for example, fits a humbucker cavity, while a traditional soapbar P-90 usually does not. Also look at the mounting method. Some pickups screw into a pickguard or ring; others use wood screws directly into the body. The screw spacing and pickup-leg shape matter too, particularly on shallow-bodied guitars.
Before buying or fitting, compare the new pickup’s dimensions with the space available. On a guitar with a pickguard, the opening may need careful enlargement for some replacement models. Do not force a pickup into place. A tight fit can pinch wires, damage the finish or prevent sensible height adjustment later.
It is also worth identifying the pickup’s wiring specification. A basic single-coil often has a hot wire and an earth wire. A four-conductor humbucker offers more options, including coil-splitting and series or parallel wiring, but it does not have to use every wire. Follow the manufacturer’s colour code, rather than assuming that black, red, green or white mean the same thing across brands.
Tools and preparation for installing guitar pickups
A clean, well-lit table makes this job far easier. Protect the guitar with a folded towel, use a small container for screws, and take clear photos of the existing wiring before touching anything. Your photos are the fastest route back if you lose track of a connection.
For a typical installation, you will need:
- A soldering iron with a fine tip, plus electronics solder
- A screwdriver that fits the guitar’s screws properly
- Wire cutters or strippers and small pliers
- A multimeter for checking continuity and diagnosing faults
- Heat-resistant protection for the work surface and a cloth for the guitar
Loosen or remove the strings so you can access the pickup and controls. With a Strat-style guitar, it is often easiest to remove the strings and lift the whole pickguard gently. On a Les Paul-style instrument, loosen the strings enough to remove the pickup mounting rings and unscrew the control cavity cover. Support the pickguard or control plate as you work so wires are not pulled tight.
How to install guitar pickups step by step
Record the original wiring
Photograph the cavity from several angles. Note where each existing pickup wire connects: normally the hot lead goes to a selector switch or volume control, while the earth wire is soldered to the back of a potentiometer. If there are several pickups, label the wires with low-tack tape before disconnecting them.
A wiring diagram for your exact pickup layout is useful, especially if you are changing from single-coils to a humbucker or adding coil-splitting. Keep in mind that diagrams show electrical connections, not always the physical arrangement inside every guitar.
Remove the old pickup carefully
Unscrew the pickup from its mounting ring, pickguard or body, keeping hold of any springs or rubber tubing beneath the mounting tabs. These parts provide tension for height adjustment and are easy to lose.
Trace the old pickup cable into the control cavity. Heat each solder joint just long enough for the solder to flow, then lift the wire away with pliers. Avoid tugging a wire free while the solder is solid, as this can damage a switch lug or lift a solder pad. A solder sucker or desoldering braid can help if there is too much old solder on the joint.
Once removed, compare the old and new units. Check the lead length, mounting hardware and orientation. Most pickups have a preferred direction: humbuckers may have adjustable pole pieces facing the bridge or neck depending on the model and desired layout, while staggered single-coils may be marked for neck, middle or bridge position.

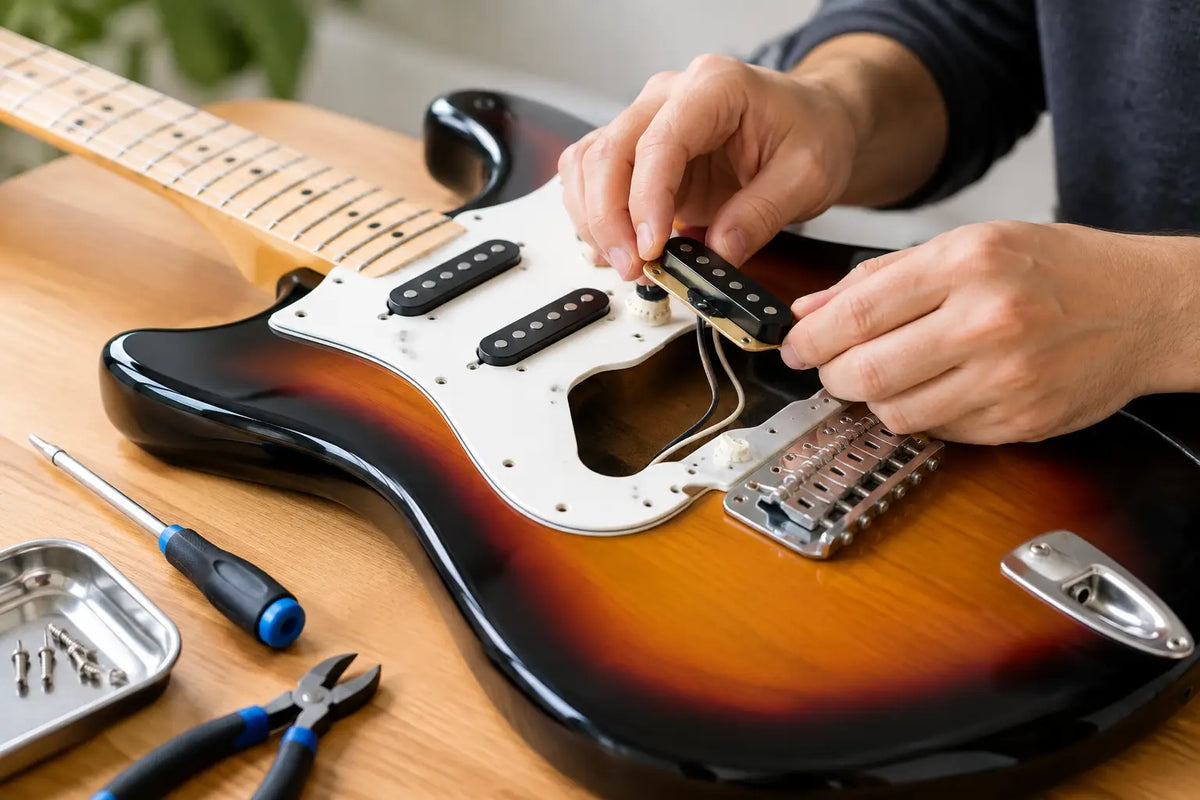

Mount the new pickup and route the cable
Feed the new cable through the same channel used by the original wire. Keep it clear of sharp edges and moving parts. Fit the springs or rubber tubing onto the mounting screws, then attach the pickup loosely. At this stage, you only need enough tension to hold it in place.
Do not trap the cable beneath a pickup ring, pickguard or cavity cover. Leave a little slack in the control cavity so the pickguard or cover can be removed in future, but avoid a large coil of wire that may create clutter or get pinched.
Solder the connections cleanly
A good solder joint is shiny, secure and small. First, strip only enough insulation to expose the required wire. Twist any bare strands together, then tin the wire by heating it briefly and applying a small amount of solder. This helps it bond quickly when you make the final connection.
For the hot connection, heat the switch lug or potentiometer terminal and the tinned wire together, then feed in a little solder. For an earth connection on the back of a potentiometer, heat the pot casing first, not just the solder. It needs slightly more heat, but do not linger. Too much heat can damage the potentiometer or loosen nearby joints.
If your new pickup has unused conductor wires, insulate them individually with heat-shrink tubing or electrical tape according to the manufacturer’s diagram. Never leave bare ends free in the cavity, where they may touch another terminal and cause a fault.
Reassemble and test before tightening everything
Before replacing every screw, plug the guitar into an amplifier at a modest volume. Select each pickup and gently tap its pole pieces with a small steel screwdriver. The selected pickup should produce a clear tapping sound through the amp. Turn the volume and tone controls to make sure they work, and try every selector position.
If there is no sound, begin with the simple checks: is the guitar volume up, is the lead working, and is the selector in the expected position? If one pickup is silent, inspect its hot connection and earth. If you hear a loud hum that reduces when touching the strings, revisit the earth connection. If two pickups sound thin and hollow together, they may be out of phase. This is common when combining pickups from different makers, and usually requires reversing the hot and earth connections on one pickup, provided its construction allows it.
Set pickup height for a useful comparison
Installation is not finished when the guitar makes sound. Pickup height has a major effect on output, clarity and sustain. Start with the strings held down at the final fret. A sensible initial setting is around 2 to 3 mm between the strings and the pole pieces, with the bass side slightly farther away than the treble side.
There is no single perfect measurement. Raise the pickup gradually if it sounds weak, but listen for harshness, warbling notes or a strange pull on sustained notes. Magnetic pickups placed too close to the strings can interfere with vibration, especially on neck single-coils. Lowering a pickup often produces a clearer, more open sound, even though the output drops a little.
Set your amp clean first and compare neck, middle and bridge positions at the same playing volume. Then try your usual overdrive or distortion. A pickup that seems bright and modest on a clean sound may sit exactly where you want it in a band mix.
When a technician is the better value
A straightforward like-for-like replacement is well within reach for many players. But it is sensible to book a technician if the guitar has active electronics, push-pull pots, complicated switching, shielding work, a damaged control cavity, or wiring that has already been altered several times. The same applies if you do not own a soldering iron and only expect to make one change - paying for a tidy, reliable installation can be better value than buying tools and risking parts.
For players ready to make the change, choose a pickup that suits the guitar and the music you actually play, not just the biggest output figure on the box. Take your time, keep your wiring neat, and let your ears guide the final height adjustment. That is where a new pickup stops being a component and starts becoming your sound.
