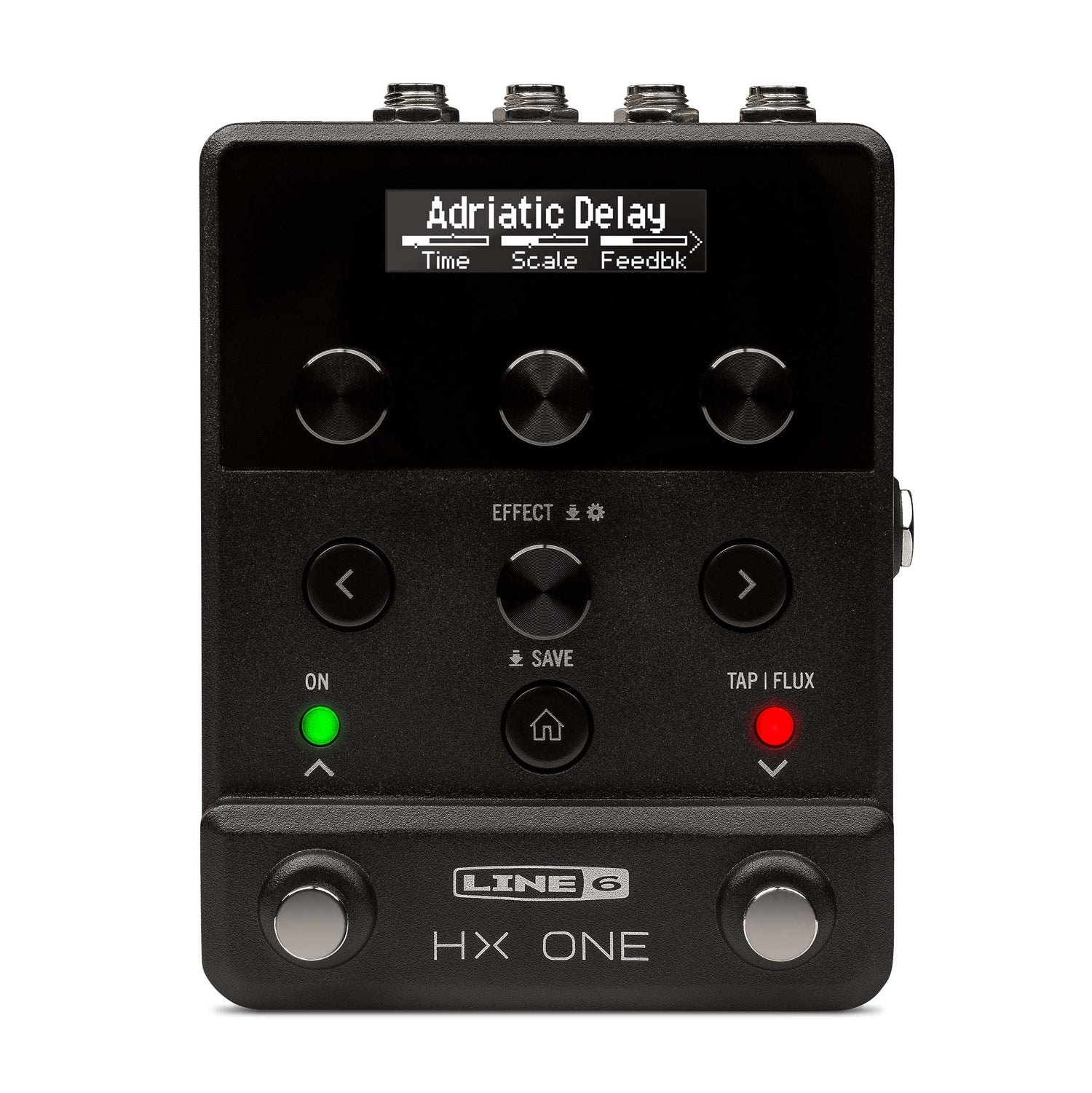

Line 6 Helix HX One | Guitar Multi-Effects Pedal

The Line 6 Helix HX One is a powerful stereo effect pedal with intuitive controls that fits onto any pedalboard. Select one of 250+ effects taken from the acclaimed HX family processors and easily adjust the parameters displayed on the OLED screen using the three corresponding knobs. You can also automate parameter changes via the unique Flux controller and trigger them with the Tap/Flux footswitch. Connect an optional expression pedal or two external footswitches for additional control.

• 250+ Effect models and 128 presets
• Updates and additional functions via USB-C connection to computer and free HX One Librarian App
• Switchable true or buffered DSP bypass
• Connection for optional expression pedal (automatic control of relevant effect parameters) or footswitch
• Adjustable input impedance
• Flux controller
• Selection and adjustment of effects via OLED display and corresponding rotary controls
• MIDI In and Out/Thru
• 4 Rotary controls for controlling and adjusting effects and presets
• 3 Push buttons for control within the user interface
• 2 Separate RGB LEDs
• OLED display
• Footswitches for bypass and tab/flux
• Connections: Stereo L/R inputs and outputs jack
• MIDI In and Out/Thru
• USB Type-C port
• Power supply connection: Barrel connector 5.5 x 2.1 mm, centre negative
• Power consumption: 500 mA
• Power supply with a 9 V DC mains adapter (included)
• Dimensions: (W x D x H): 96 x 125 x 62 mm
• Weight: 450 g

HX One also provides adjustable input impedance; a choice of True Bypass or buffered DSP Bypass; MIDI In and Out/Thru connectors; 128 Presets; and a USB-C port for firmware updates and use with the HX® One Preset Librarian application. HX One may be powered using the included 9V power supply or most third-party power supplies, making it easy to add to your pedalboard.
